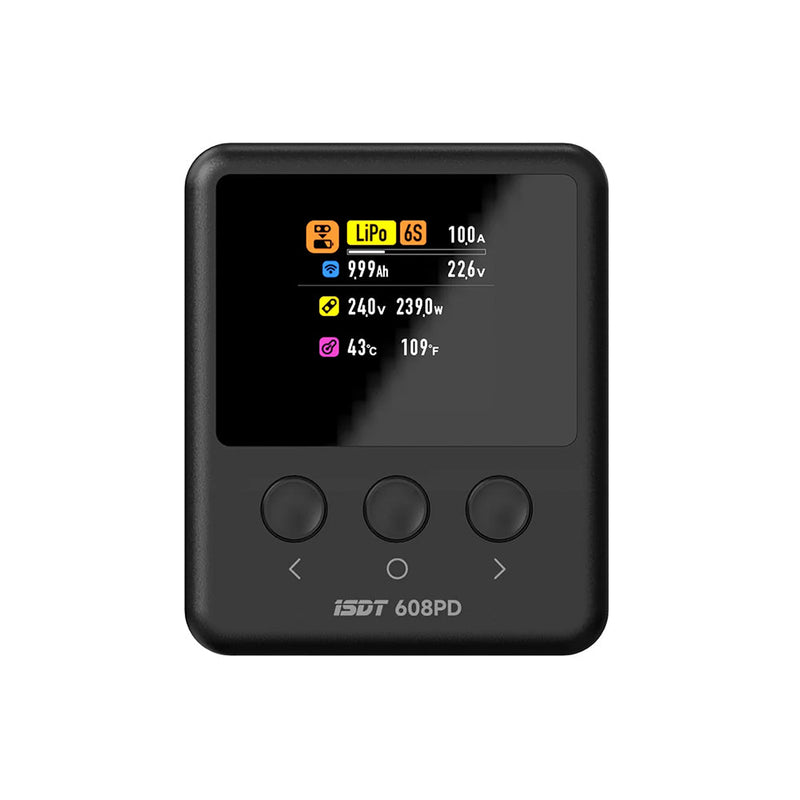

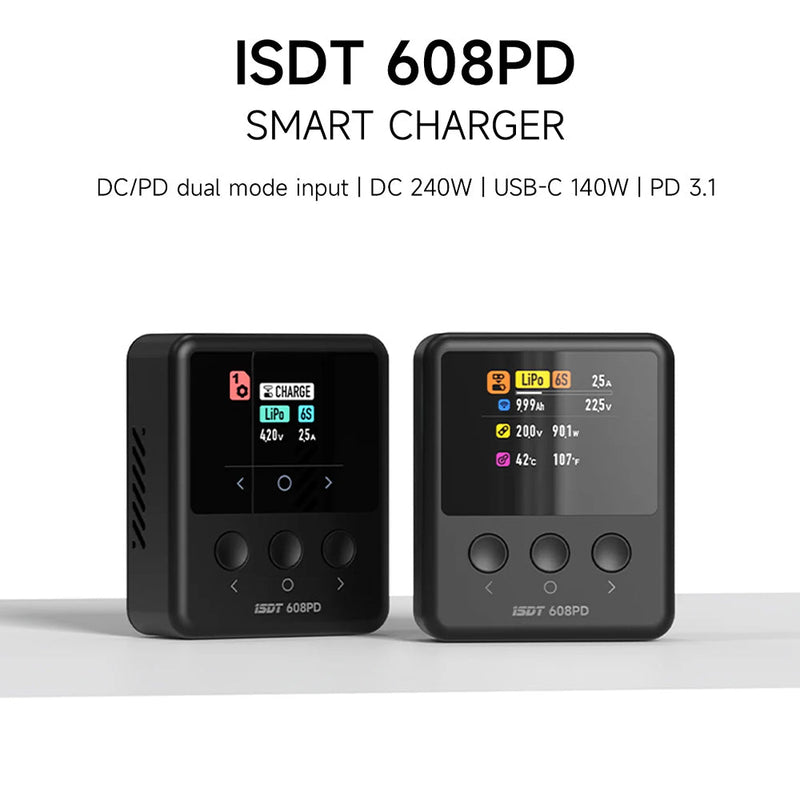

ISDT 608PD DC 240W 10A Lipo 1-6S USB-C Universal Pocket Charger

ISDT 608PD a new generation of pocket chargers: DC 240W high power / max 10A output with USB C 140W/5A max output,meet your multi-scenario high power for Lipo battery charger needs.

Features:

• Truly intelligent charger: Support APP connection, fully intelligent battery management, one-click view of battery parameters and charging status.
• IPS screen：Low power consumption, 2.4 inch IPS screen, automatic brightness adjustment, viewing angle 178°, clear and clear display, even in difficult environments or angles, even in strong sunlight.

• Powerful cooling system：Advanced artistic cooling air duct, active design of the cross flow cooling air duct, initiator ball bearing fan, with precisely engineered aluminium alloy fins and hi-tech silicon heat conducting pad, construction of a highly efficient heat dissipation system.

• Universal charger: Supports charging and discharging for most batteries, including: LiFe, LiPo, LiHv (4.35V~4.50V) 1-6S/Pb 1-12S/NiMH 1-16S, etc.


Specifications:

• Maximum Input Current: DC 10A,USB-C 5A
• Input voltage range: DC 5-30V, USB-C 5-28V
• Output Voltage Range: DC 3.0~30V
• Charging Current: 0.5~10.0A
• Maximum charging power: 240W/10A,140W/5A
• Maximum Discharge Power: USB-C 100W/5A
• Support battery type and series: LiFe,LiPo,LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S
• Balance Current: 0.8A/Cell Max
• Operating Temperature: 0~40℃ Storage Temperature: -20~60
• Abnormal battery voltage alarm: Support
• Alarm for string number setting error: Support
• Dimension: 72.5×60×26.6mm
• Weight: 85g(±10%)

Download the MANUAL here

Package Includes:

• 1 x ISDT 608PD DC 240W 10A Lipo 1-6S USB-C Universal Pocket Charger
