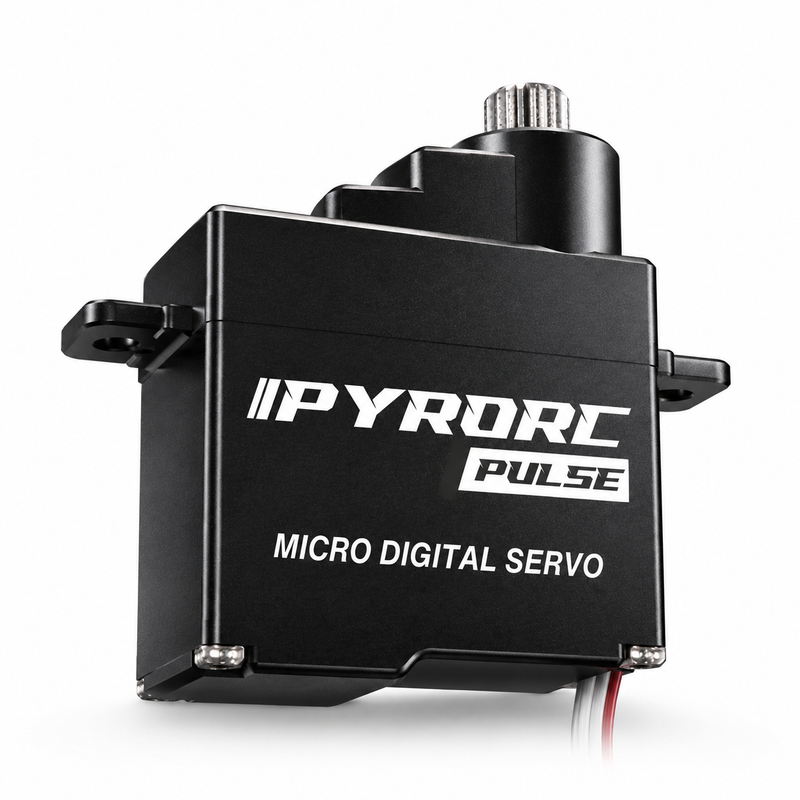

PyroRC Pulse Digital Micro Servo

Product Description

Introducing the PyroRC Pulse Digital Micro Servo — the ultimate high-performance servo solution engineered for competitive 1/18, 1/24, and 1/28 scale RC racing. Built with precision titanium gears, a coreless motor, and a machined aluminum case, this servo delivers exceptional speed and reliability. The standard 20T drive spline and JST connector ensure seamless compatibility with existing accessories, making installation effortless. Push your micro RC car to its limits with lightning-fast response times and unmatched torque — plug in and dominate the track.

Features:

• Ultra light-weight Micro RC servo
• High-voltage capable, up to 8.4v
• High precision titanium gear
• High quality coreless motor
• Beautifully machined aluminum case provides excellent heat dissipation
• Includes CNC Machined Aluminum Servo Horn
• Modify various Parameters via optional USB Programmer
• The PyroRC Pulse is specially configured with the standard 20T drive spline for use with existing servo horns and accessories (compatible with Reflex Racing's RX28!!)
• Designed for Micro RC cars, 1/18, 1/24, 1/27, 1/28 Scale Cars requiring a Low Profile (8mm) Servo (Atomic MRZ, MRT; GL-Racing GLR, GLF-1, GL-GT GL-D, GLA)

Specifications:

• SPECIALLY CONFIGURED W/ 20T DRIVE SPLINE
• Operating Voltage: 4.8-7.4V
• Operating speed: 0.075sec/60°@4.8V
• Operating speed: 0.052sec/60°@8.4V
• Stall Torque: 1.8 kg-cm (25 oz-in) @4.8VStall Torque: 3.0 kg-cm (30 oz-in) @8.4V
• Gear: Titanium
• Motor: Coreless
• Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)
• Weight: 7g
• Connector/Wire: JST1.5 / 60mm, 28AWG
